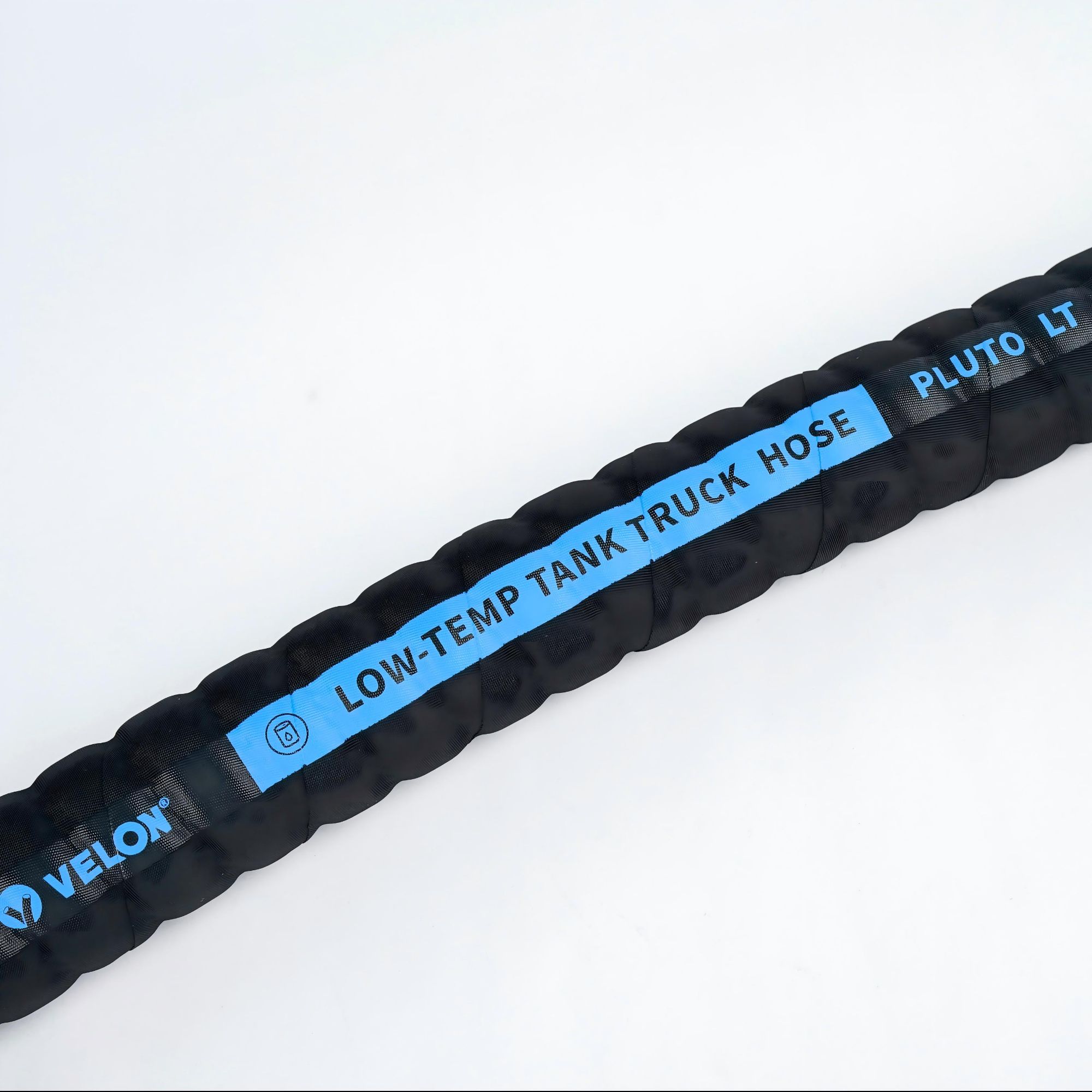

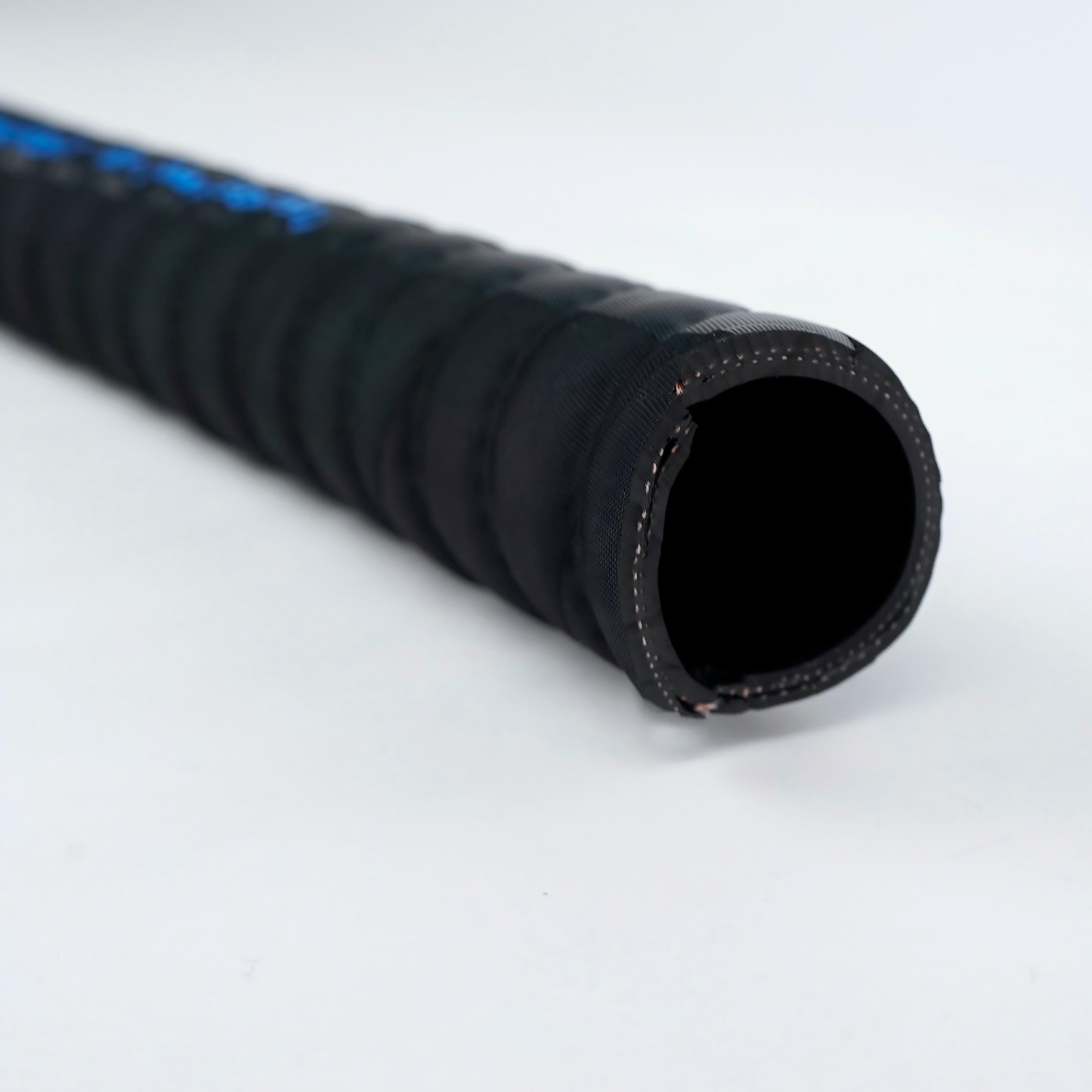

Low Temperature Petroleum Suction And Delivery Hose

Flexible corrugated hose for suction and delivery of petroleum products with aromatic content less than 60%, including diesel, ethanol, gasoline, etc. Excellent low temperaturea resistance up to -54°C. The inner tube is antistatic, and the cover is corrugated which efficiently reduces the friction coefficient and improves wear resistance.

 Tube:Black, NBR synthetic rubber, highly oil-resistant, antistatic (R<1MΩ/m)

Reinforcement:High strength synthetic cord with steel helix wire

Cover: Black, corrugated, NBR synthetic rubber

Temperature Range:-54℃ (-65℉) to +90°C (+194°F)

No.	Size	I.D.	O.D.	W.P.		B.P.		Vacuum	MBR	Weight	Length
	(inch)	(mm)	(mm)	(bar)	(psi)	(bar)	(psi)	(bar)	(mm)	(kg/m)	(m)
PLUTO LT 10-0075	3/4"	19.1	31.0	10	150	30	450	0.9	90	0.63	40
PLUTO LT 10-0100	1"	25.4	37.0	10	150	30	450	0.9	100	0.86	40
PLUTO LT 10-0125	1-1/4"	31.8	44.0	10	150	30	450	0.9	130	1.06	40
PLUTO LT 10-0150	1-1/2"	38.1	50.0	10	150	30	450	0.9	150	1.28	40
PLUTO LT 10-0158	1-37/64"	40.0	52.0	10	150	30	450	0.9	160	1.48	40
PLUTO LT 10-0200	2"	50.8	64.0	10	150	30	450	0.9	230	1.76	40
PLUTO LT 10-0250	2-1/2"	63.5	78.0	10	150	30	450	0.9	290	2.10	40
PLUTU LT 10-0300	3"	76.2	91.0	10	150	30	450	0.9	360	2.70	40
PLUTO LT 10-0316	3-5/32"	80.0	95.0	10	150	30	450	0.9	400	2.90	40
PLUTO LT 10-0355	3-35/64"	90.0	105.0	10	150	30	450	0.9	450	3.56	40
PLUTO LT 10-0400	4"	101.6	118.0	10	150	30	450	0.9	550	4.05	40

Suitable for extremely low temperatures, down to -54℃ (-65℉)
