Silicone Hose

Suction and Discharge Silicone Hose Pro




Short Description:

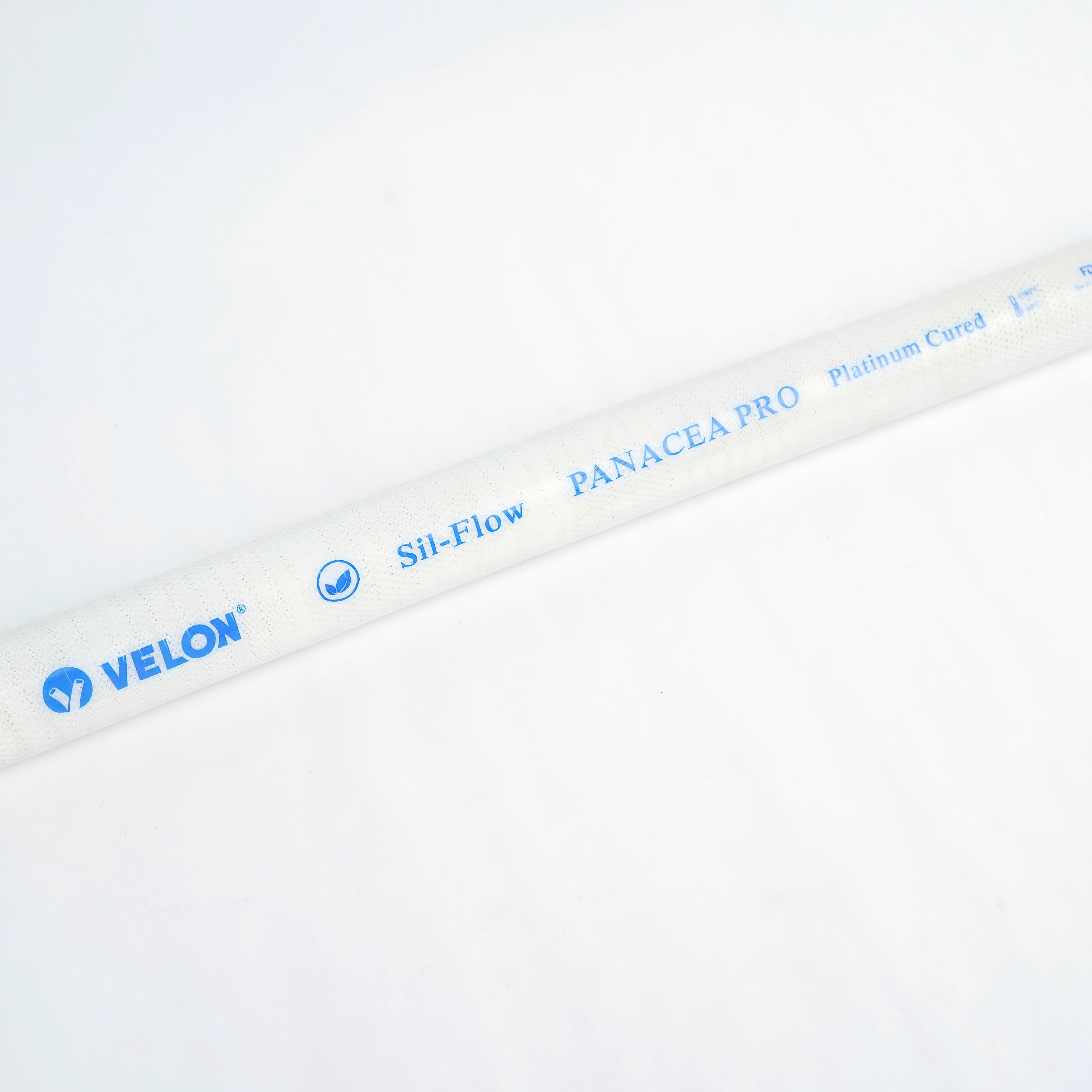

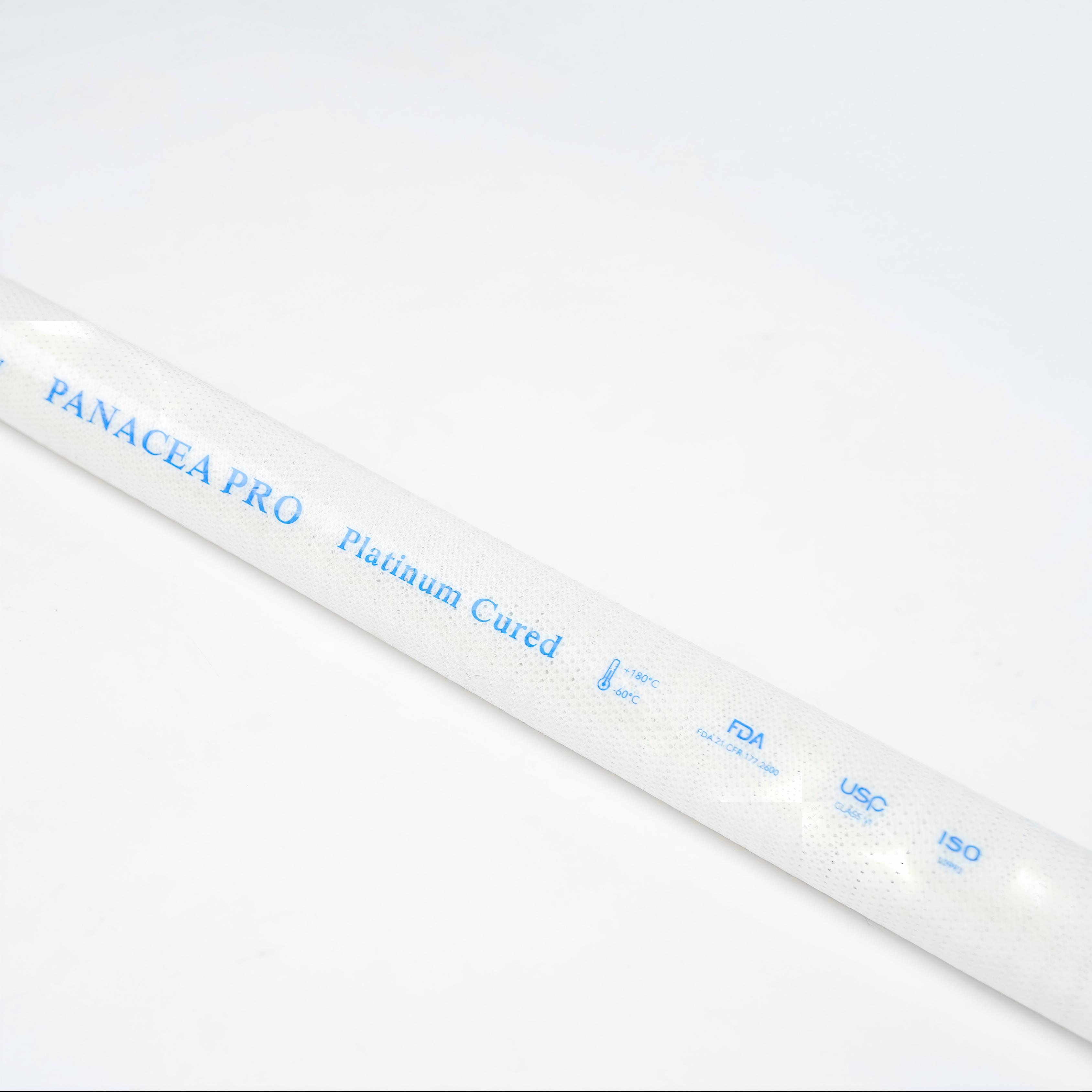

Product: Suction and Delivery Silicone Hose Pro

Type Code: PANACEA PRO

Structure: High Purity platinum-cured silicone with 4 layers of polyester and 304 stainless steel helix wire.

Color: Semitransparent
Inquiry Download
  • Product Detail
  • Product Tags
Applications
>>>

Pharmaceutical grade silicone hose for ultrafiltration, purification, liquid dispensing system connection, and material transmission between tanks. Also can be used for extremely high hygiene requirements in the food and beverage industry. Compliable with USP Class VI.

Technical Description
>>>

 Structure:High purity platinum-cured silicone with 4 layers of polyester and 304 stainless steel helix wire.

* SS316 steel wire is available to customize

Color:Semitransparent

Temperature Range: -60°C (-76°F) to +180°C (+356°F)

Standards
>>>

 FDA 21CFR 177.2600, EC No. 1935/2004, EU No. 10/2011, USP VI, ISO 10993

Type
>>>

No. Size I.D. O.D. W.P.  B.P. Vacuum MBR Length
(inch) (mm) (mm) (bar) (psi) (bar) (psi) (bar) (mm) (m)
PANACEA PRO-0038 3/8" 9.5  21.9 10 150 40 600 0.9 60 10
PANACEA PRO-0050 1/2" 12.7  25.1 10 150 40 600 0.9 60 10
PANACEA PRO-0063 5/8" 15.9  28.4 10 150 40 600 0.9 70 10
PANACEA PRO-0075 3/4" 19.1  31.4 10 150 40 600 0.9 85 10
PANACEA PRO-0100 1" 25.4  37.8 10 150 40 600 0.9 110 10
PANACEA PRO-0125 1-1/4" 31.8  44.2 10 150 40 600 0.9 140 10
PANACEA PRO-0150 1-1/2" 38.1  50.5 10 150 40 600 0.9 180 10
PANACEA PRO-0200 2" 50.8  63.2 10 150 40 600 0.9 250 10
PANACEA PRO-0250 2-1/2" 63.5  75.9 7 100 28 400 0.68 280 6
PANACEA PRO-0300 3" 76.2  88.6 4 60 16 240 0.68 390 6
PANACEA PRO-0400 4" 101.6  114.4 3 45 12 180 0.68 480 6

Advantages
>>>

Excellent bending performance

Suitable for CIP and SIP

Pharmaceutical grade hose, tasteless, non-poisonous, phthalates free
